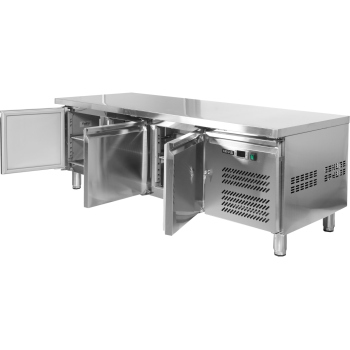

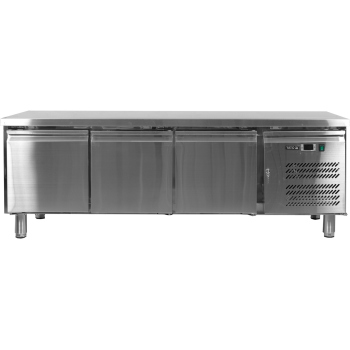

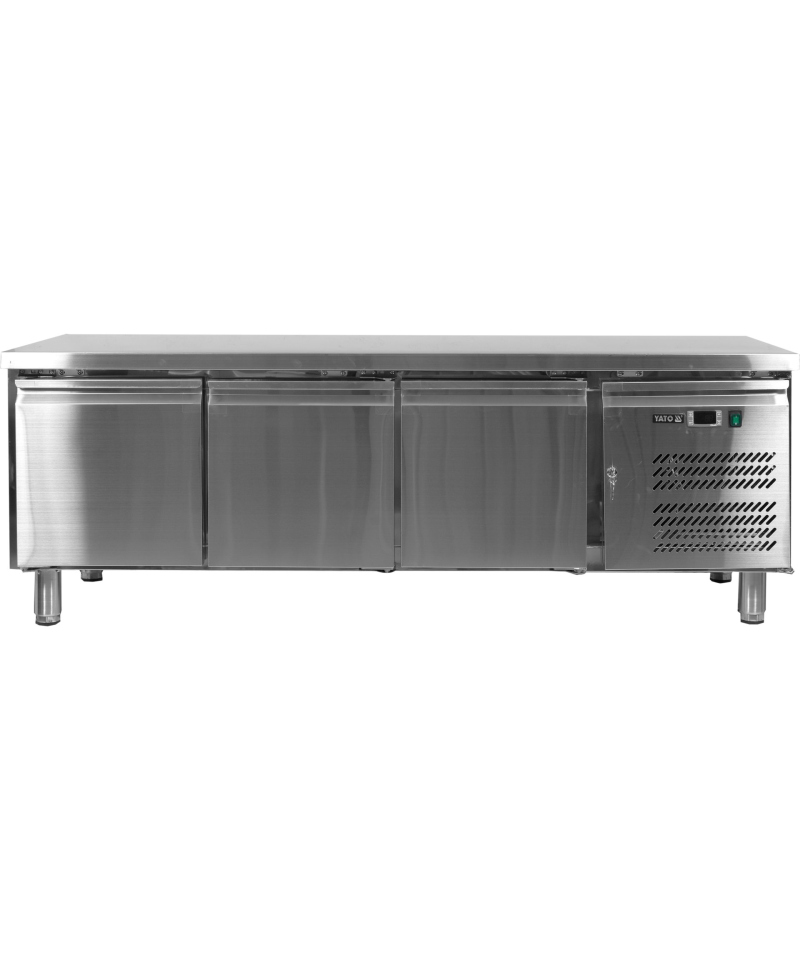

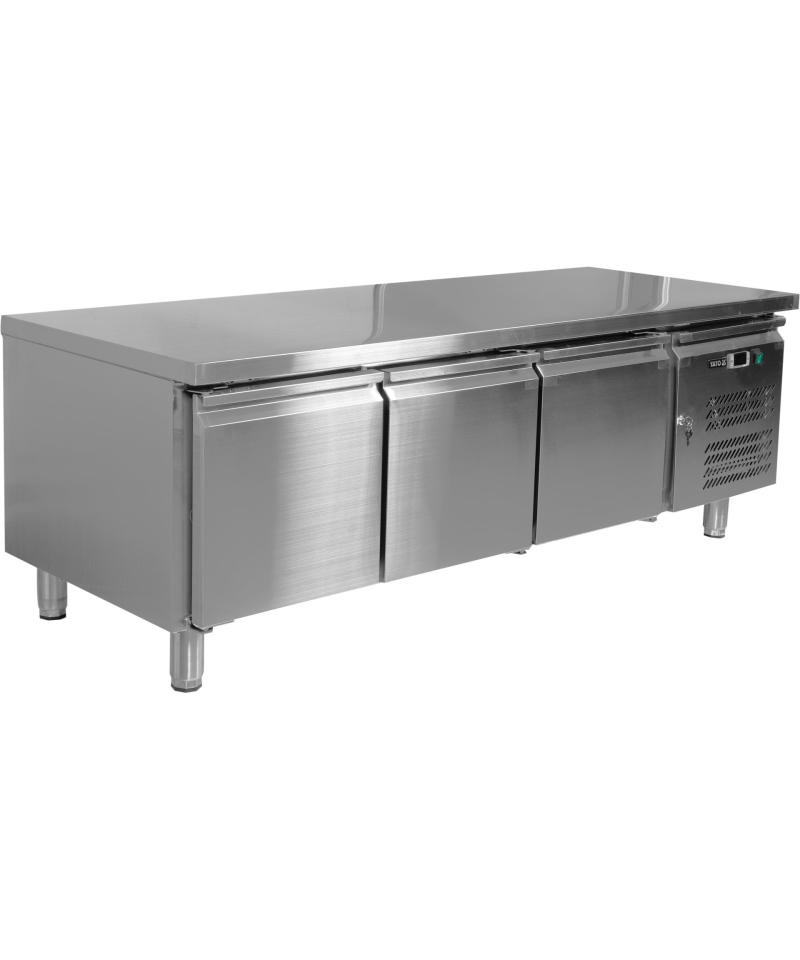

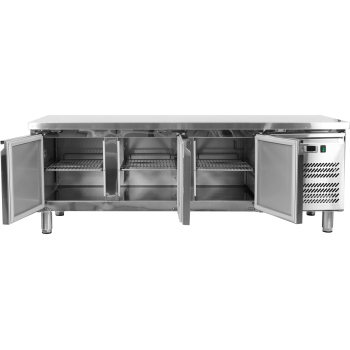

Professional 3-door refrigerated base with side compressor – 700 line YATO YG-05259.
Perfectly designed for safe food storage within the optimal temperature range of -2 to +80C. It is an indispensable solution for various catering establishments, including restaurants, bars, pubs, and pizzerias.

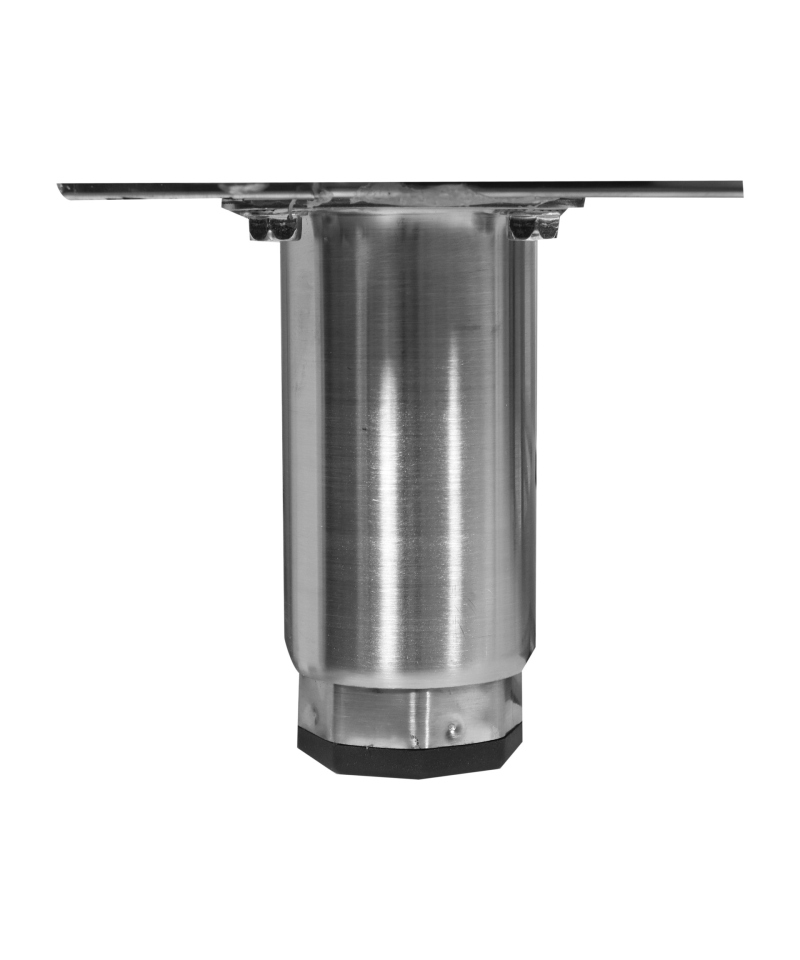

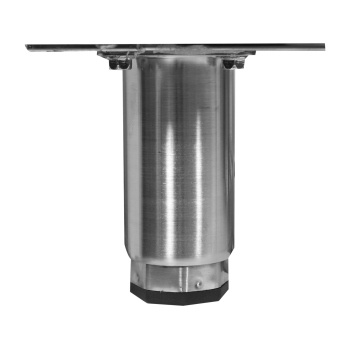

This functional refrigerated table offers a spacious worktop with dimensions of 1795 x 700 mm and an adjustable total height in the range of 650~720 mm, thanks to 4 legs with 70 mm adjustment. Its design allows for convenient placement of various countertop devices, such as fryers, vegetable choppers, meat grinders, or slicers. Its compact height also allows it to be successfully installed under an existing worktop, optimizing space.

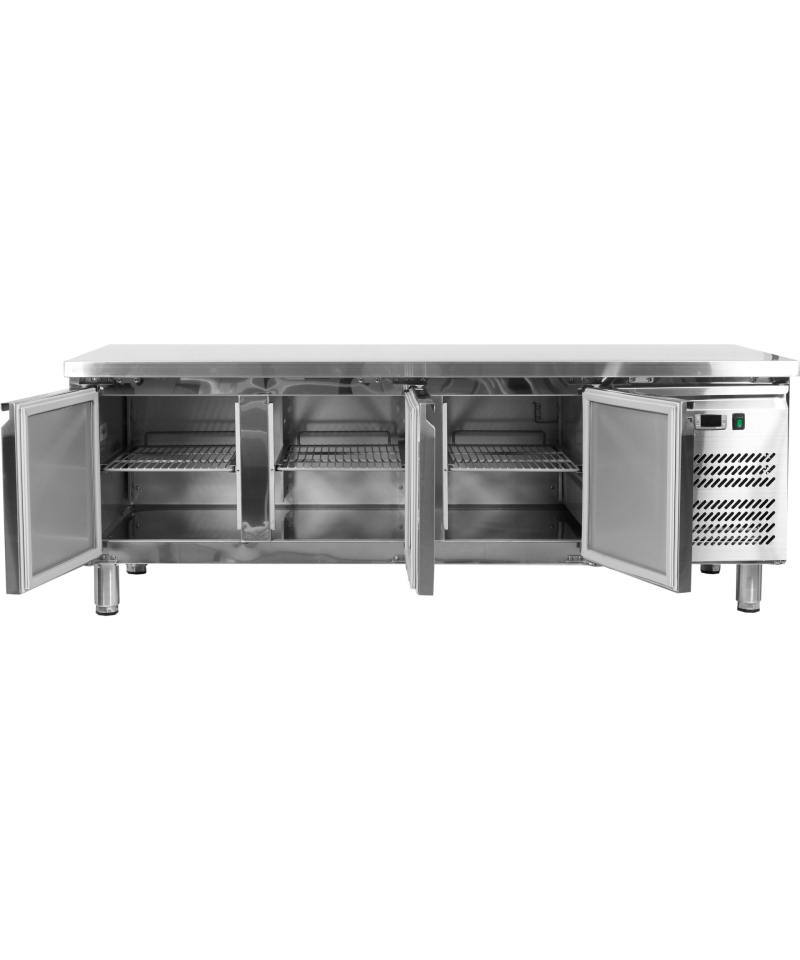

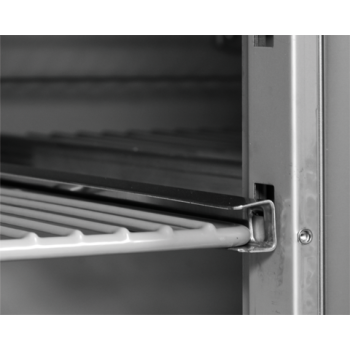

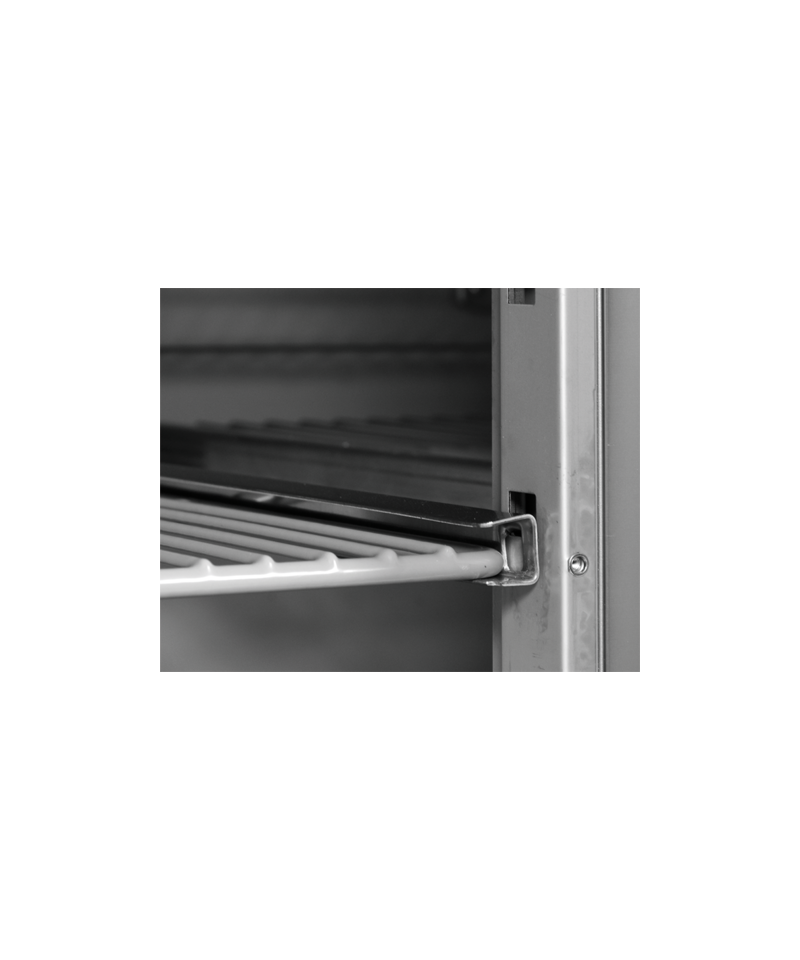

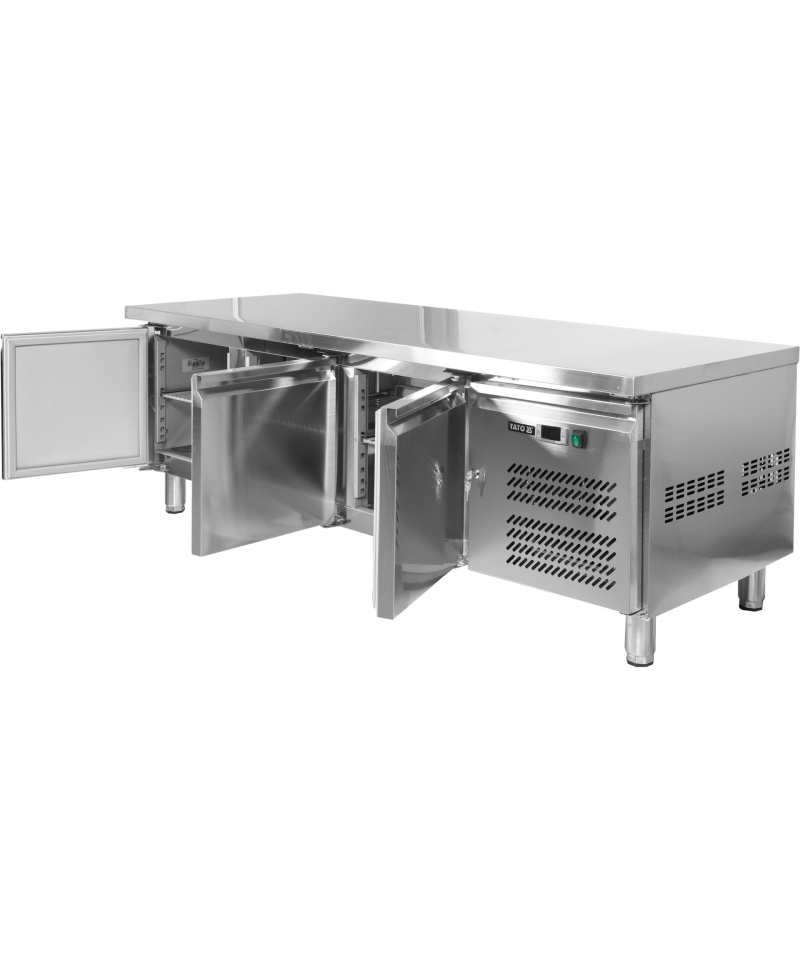

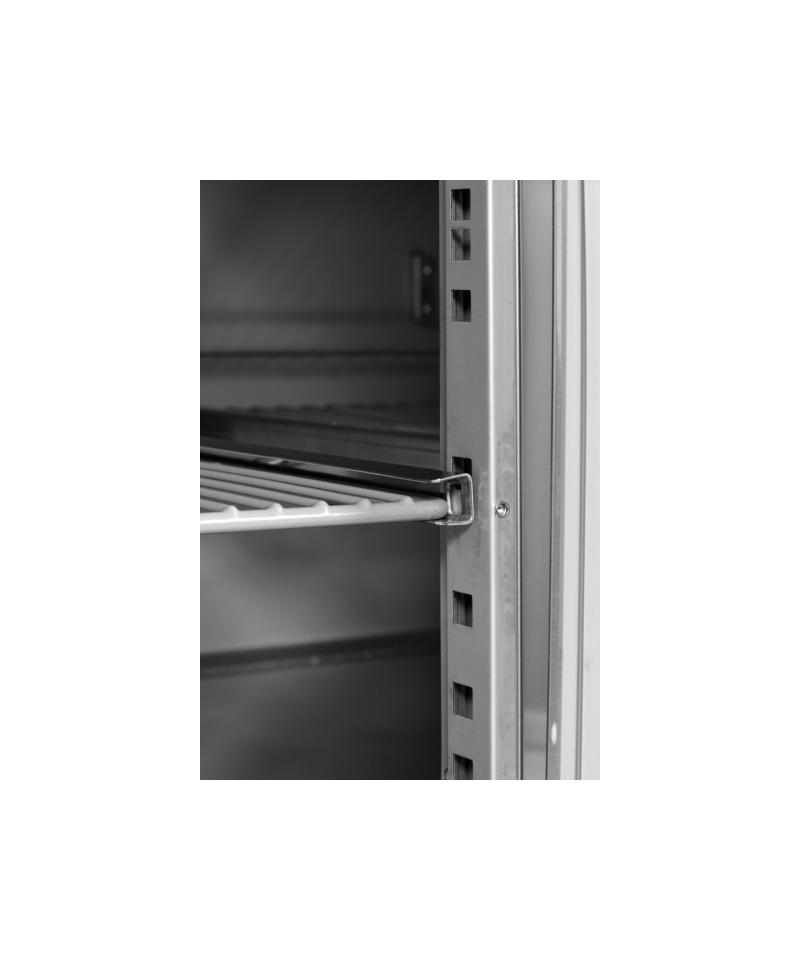

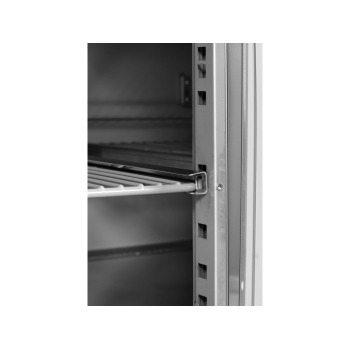

The table is equipped with 3 self-closing doors with easily replaceable magnetic gaskets, which ensures excellent sealing and energy efficiency. The interior houses 3 sturdy PVC-coated shelves with dimensions of 330 x 530 mm, each with a maximum load capacity of up to 40 kg. Thanks to the 6-step height adjustment, the internal space configuration is flexible and adaptable to individual needs. The device is suitable for storing GN 1/1 gastronomic containers. The total usable capacity of the chamber is 317 L.
Both the external and internal casing are made of high-quality SS201 stainless steel, which not only ensures an elegant and professional appearance but also exceptional durability. The rounded edges of the internal chamber significantly facilitate hygiene and cleanliness, meeting the highest sanitary standards.

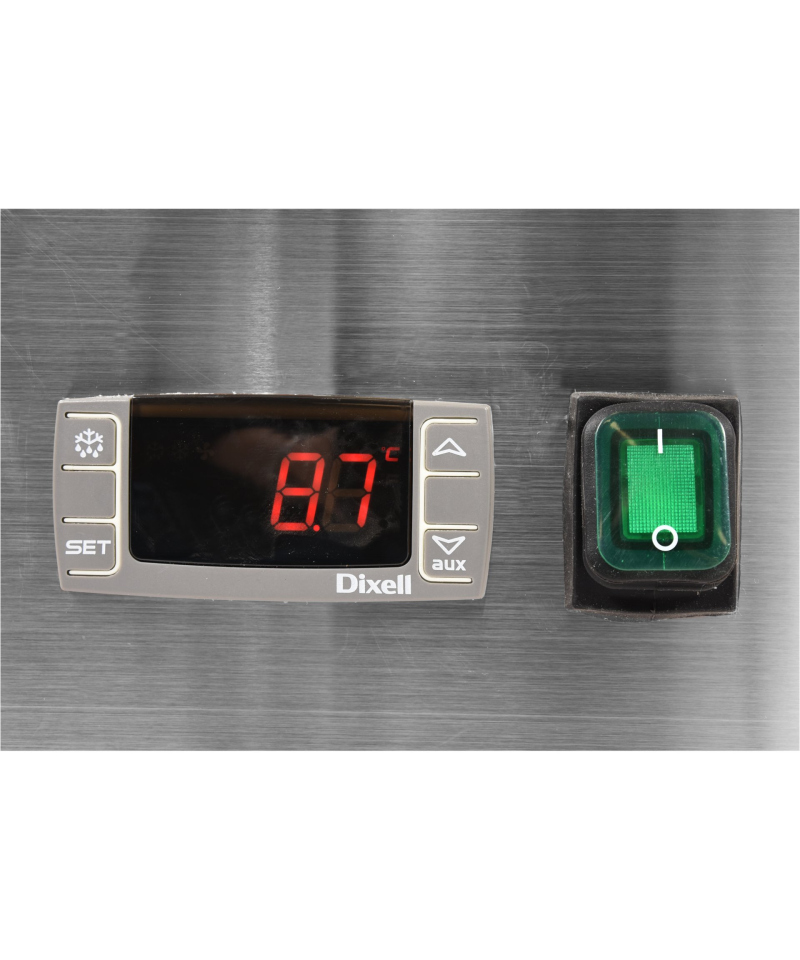

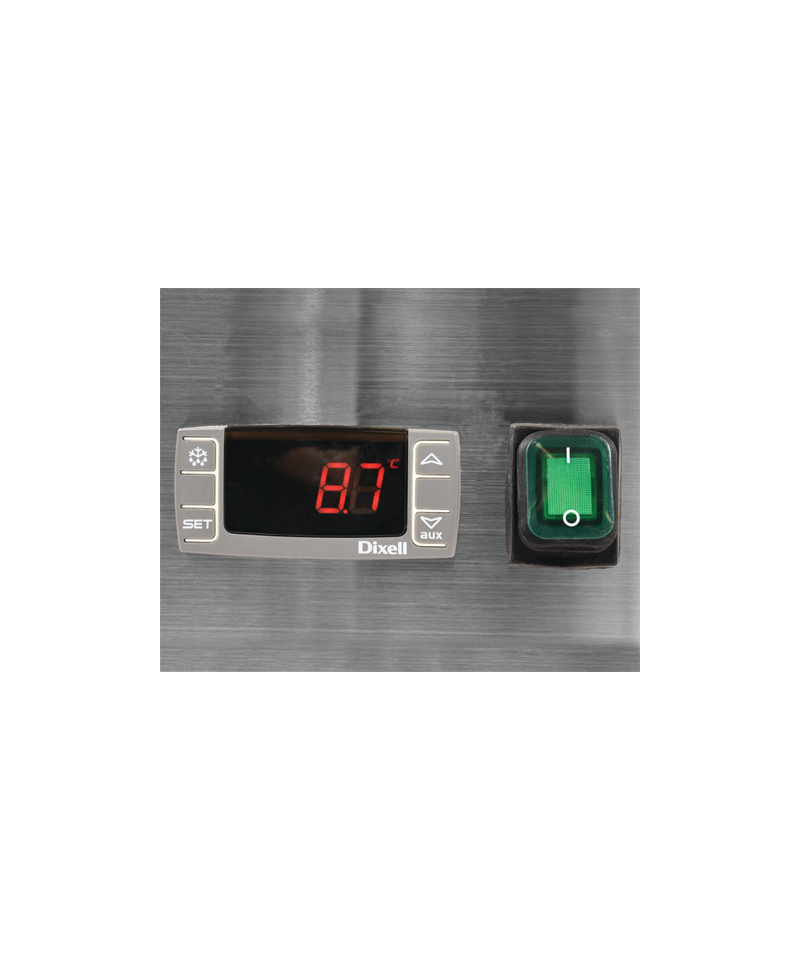

The efficient side refrigeration unit with a power of 230 W operates on the ecological refrigerant R290, designed for optimal operation in climate class 4, at a maximum ambient temperature of 300C and relative humidity of 55%. Annual energy consumption remains at 1138 kWh, which demonstrates its efficiency. The device is powered by a standard voltage of 220-240V ~50Hz. Precise temperature control is ensured by an electronic Dixell brand controller with a clear digital display.
The device is equipped with an advanced system of fan-forced cooling circulation , ensuring even temperature distribution, and a practical function of automatic defrosting, minimizing the need for manual maintenance.
Parameters:
