Industrial Cutter Bowl Chopper/Cutter, Talsa K95sb

Industrial Multi-Function Mixers K95s Suprem Talsa

The new K95s Suprem series: quality, innovation, efficiency.

IN OPERATION

• Very high blade speed, smoothly adjustable from 500 to 5000 rpm.
• Slow mixing speed, smoothly adjustable from 50 to 500 rpm, forward and reverse.
• German BE-Maschinenmesser blades made of high-resistance KUT steel. Minimal space between all blades and the bowl thanks to its large central diameter.
• 4 buttons on the screen for direct selection of blade and bowl speed, freely configurable.
• Motorized, stainless steel blade holder enabling effortless lifting and lowering.
• CE-approved transparent soundproof cover reduces blade speed when opening; returns to previous speed when closed.

CUTTING MECHANICS

• Replaceable 6-blade head and leveling rings for use with 3 blades.
• Simplified blade shaft, highly reliable, with high-quality bearings and seals for high speeds, 2-year warranty.
• New vibration reduction technology at high speeds, developed in collaboration with the Polytechnic University UPV.
• Excellent professional results with meat, vegetables, vegan/vegetarian food, fish, special dough.

STAINLESS STEEL CONSTRUCTION

• Completely stainless: entire frame, external and internal, made of AISI304 stainless steel, as well as all elements and components.
• Very solid construction, heavy machine weighing approx. 1400 kg.
• Solid stainless steel cast bowl weighing 220 kg, with external rim preventing leakage of liquids or dough.
• Low bowl height for more convenient work.
• Bowl with drain plug.
• Adjustable, stainless steel machine legs, non-slip and vibration-damping.

CLEANING

• Machine body surfaces with water-draining slopes to avoid stagnation and facilitate cleaning.
• Polished surfaces without sharp corners, with CE radius for easy cleaning and compliance with hygiene standards.
• Large, removable bowl scraper.
• Double-sealed, waterproof access panels.
• Closed machine bottom.
• Replaceable friction seal between cover and bowl, with self-adjusting springs.

ELECTRICAL AND ELECTRONICS

• Powerful motors for fast processing of dense and chilled dough.
• Two motor powers available for blades.
• Smooth start and stop of blades and bowl with two-speed drives.
• High energy efficiency class IE3, high-performance ABB motors, and latest generation drives.
• Automatic blade safety switch.
• Thermal motor protection.
• Fast and responsive digital thermometer with sensor located in the inner recess of the cover.

SOFTWARE AND EXTERNAL CONNECTIONS (continuation)

• New Talsa EcoCut Power Control function allowing determination of machine power required to achieve desired cutting effects at any point in the process.
• Industry 4.0 digital solutions for maintenance, process integration, and custom solutions.
• Remote access to service and technical support via secure internet connection. (Router/ethernet or mobile phone).
• Folding internal electrical panel, easy access, temperature-regulated cooling system.
• Electronic and electrical components from renowned brands Schneider Electric and ABB.

Technical Data

• Model: K95sb
• Bowl capacity: 95 liters (25 gallons)
• Approximate batch size
• soft mixture ± 20-70 kg (± 44-155 lbs)
• hard mixture ± 20-50 kg (± 44-110 lbs)

*Motor power 25 kW / 34 HP

• Type of electrical power supply three-phase
• Maximum consumption 380/400 V 42 A

*Blade speed

• smoothly adjustable from 500 to 5000 rpm
• freely configurable preset selection buttons

• Net weight approx. ± 1400 kg (± 3100 lbs)

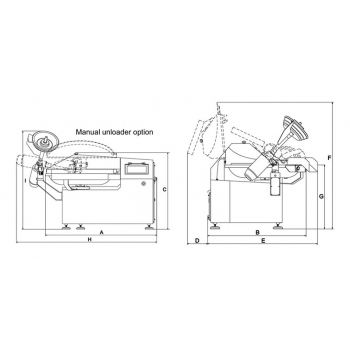

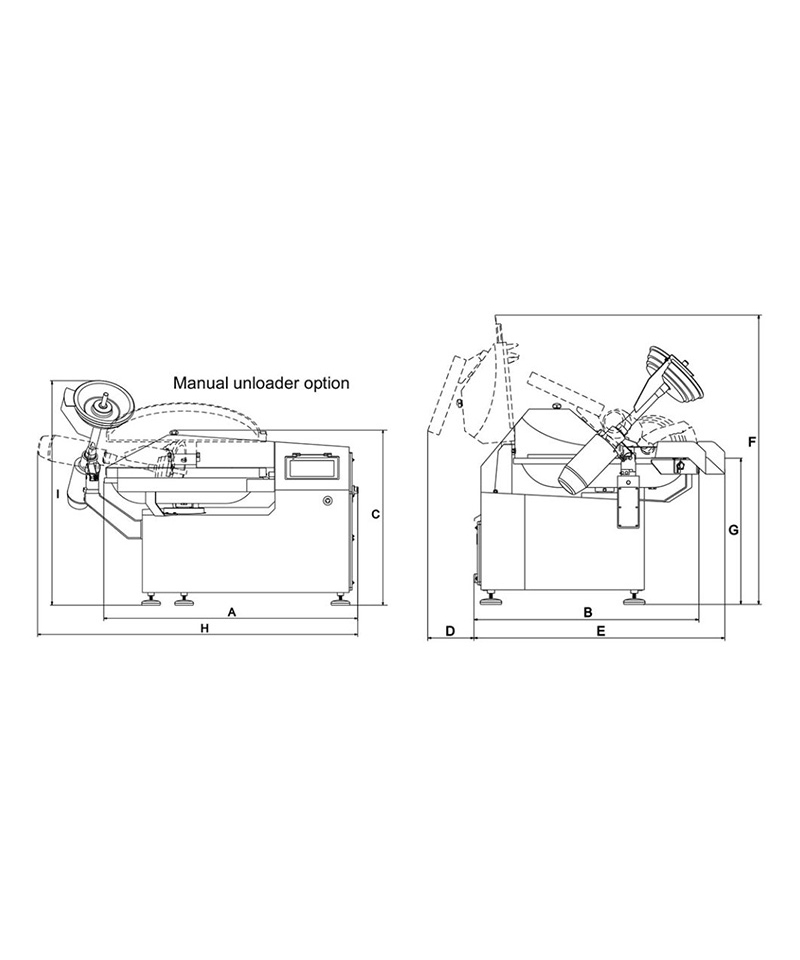

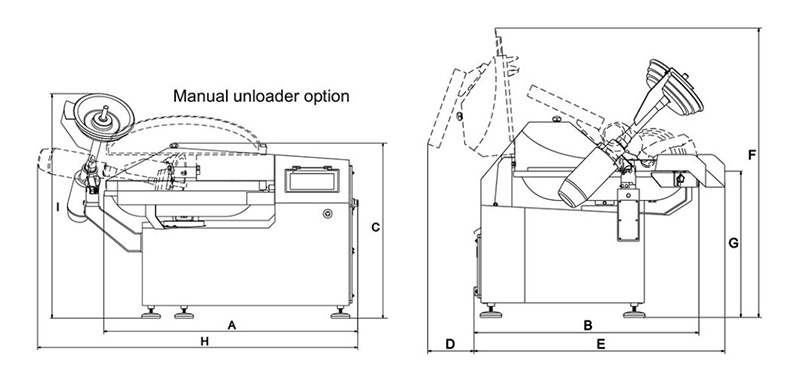

Dimensions:
