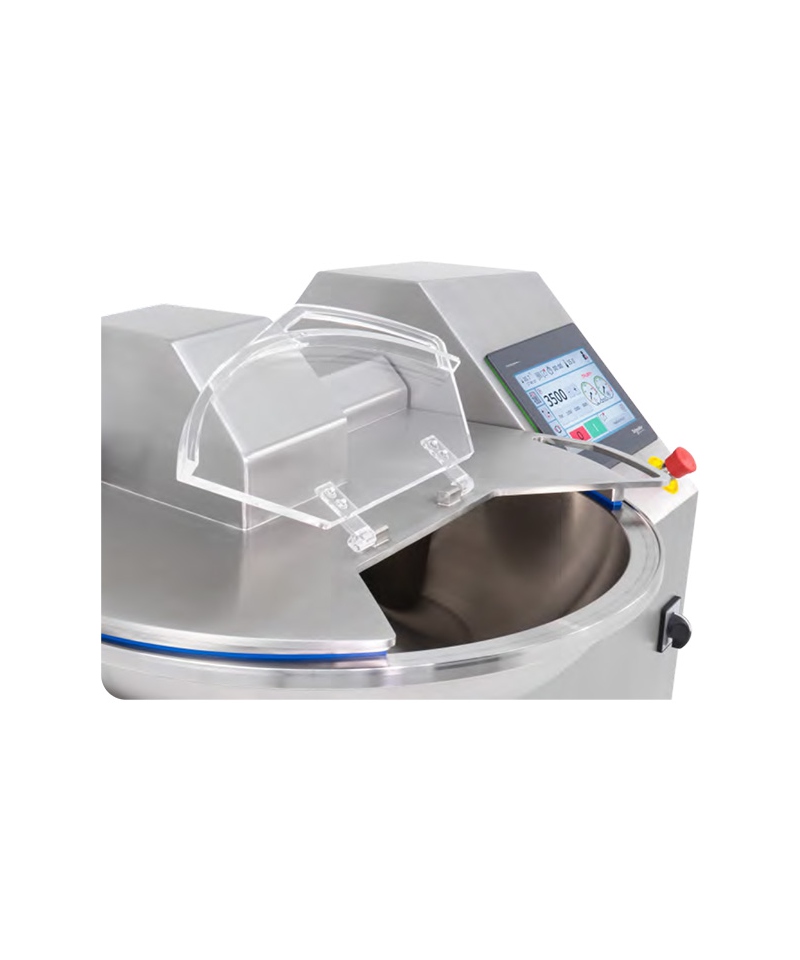

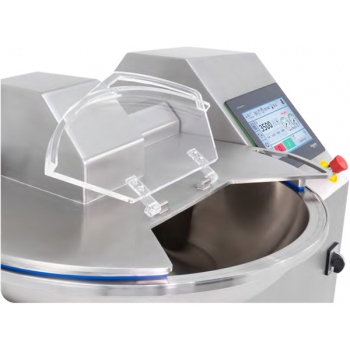

Bowl Cutter/Shredder/Chopper, Talsa K30s

Bowl Cutter/Shredder/Chopper K30s

The most modern and advanced cutting device for small craftsmen on the market.

Advantages at a Glance

• Very high blade speed, smoothly adjustable from 500 to 3500 rpm.
• Smooth knife start thanks to electronic drives, overload protection.
• German BE-Maschinenmesser KUT steel knives with high resistance.
• Minimal space between all knives and the bowl thanks to a large central diameter.
• Simplified knife shaft, very reliable, with high-quality bearings and seals for high speeds, 2-year warranty.
• Solid stainless steel construction, bowl and lid.
• Electric device preventing condensation inside the machine frame.
• Adjustable, non-slip, and vibration-damping stainless steel legs.
• Excellent professional results with meat, vegetables, vegan/vegetarian food.

Exceptional Features

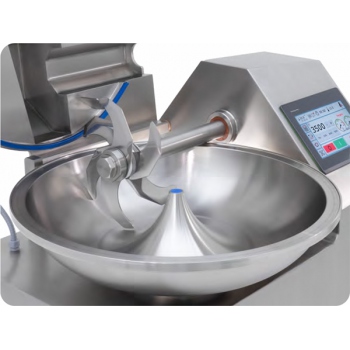

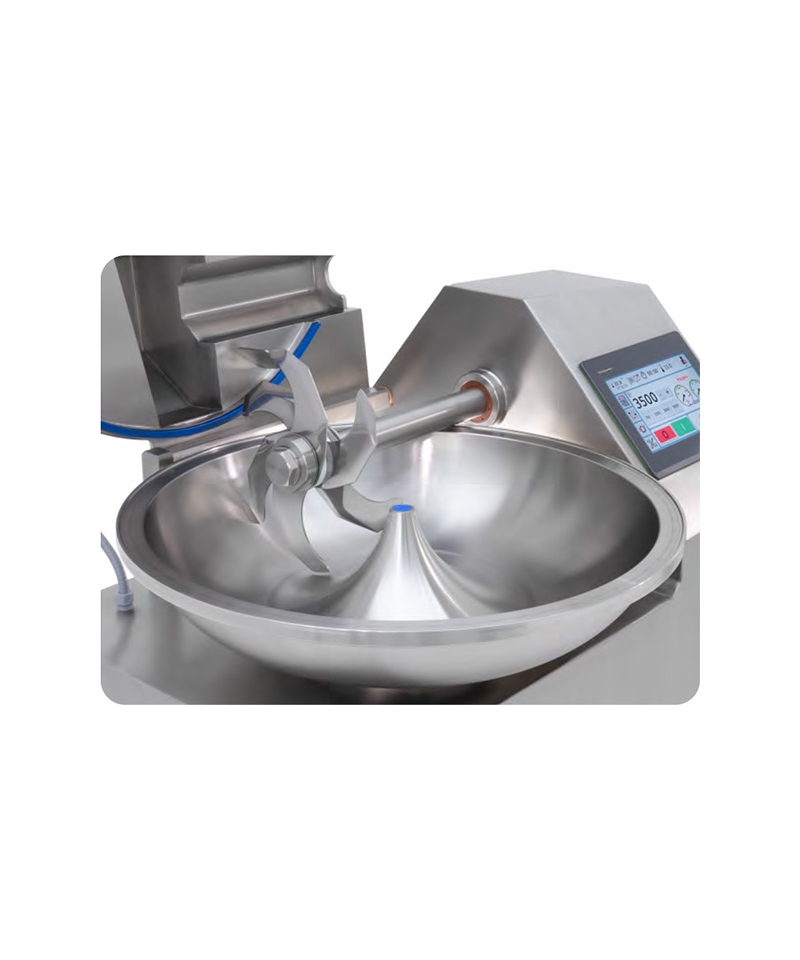

• Interchangeable knife head with 3 knives (standard).
• Optional 6-knife head.

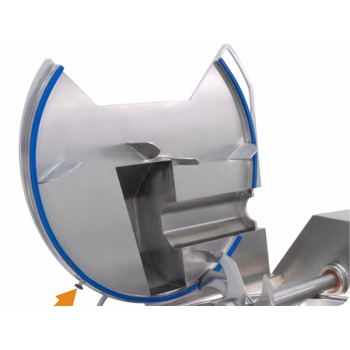

• Replaceable, self-adjusting lid/bowl pressure belt.

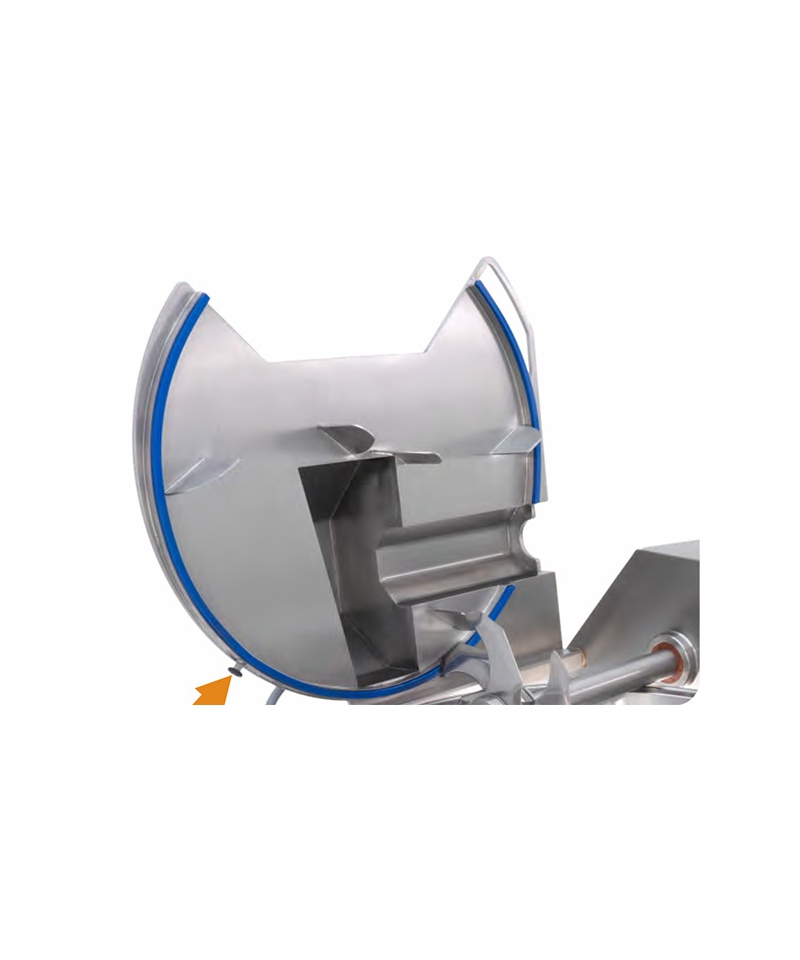

• Transparent noise protection cover.

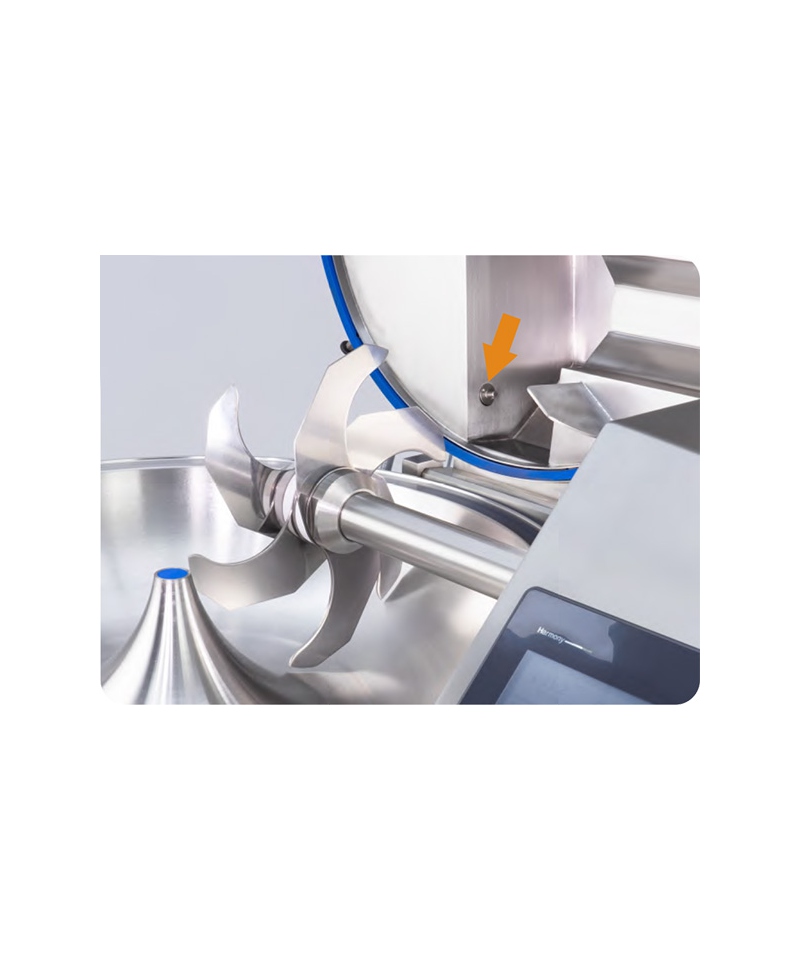

• Temperature sensor (°C/°F) located in the lid recess: precise temperature measurement during operation.

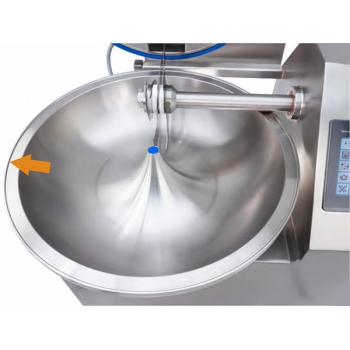

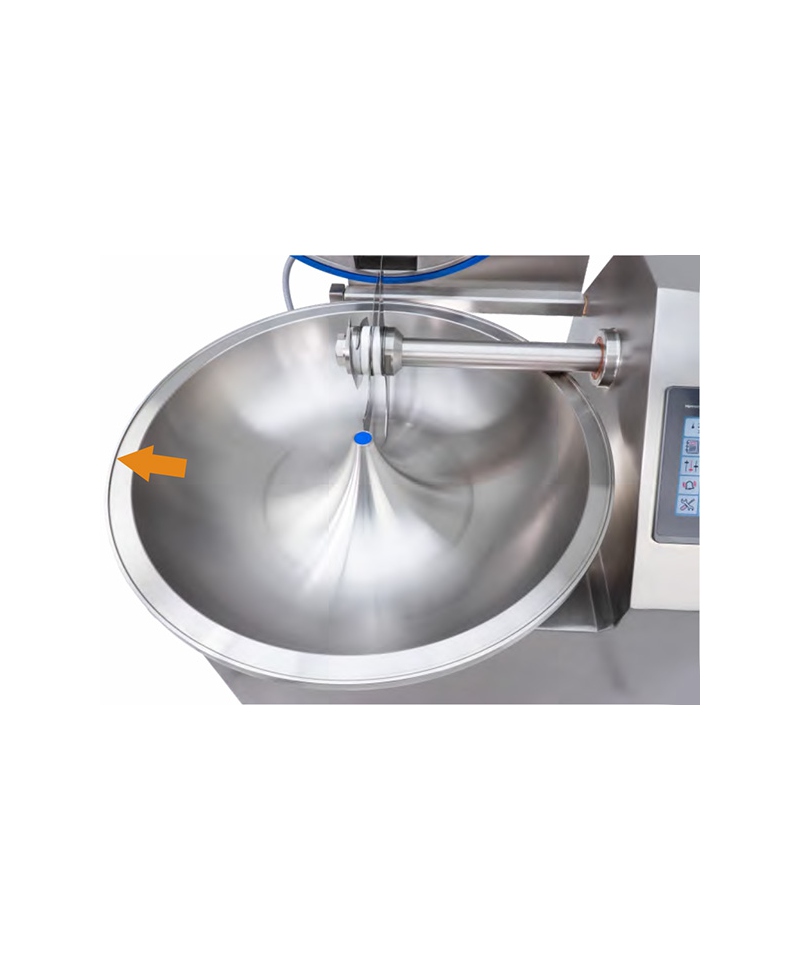

• Solid stainless steel bowl cast from solid material. CNC machining, with rim.

Software and External Connections

• NEW: 10-inch digital touch display and TalsaControl 4.0
• Control panel with a large 10-inch digital touch screen Schneider Electric, all information displayed simultaneously: knife speed, temperature, operating time and current time.
• 4 preset knife speed buttons, freely configurable.
• Highly advanced and practical software with automatic stop options, triggered by temperature limit and/or elapsed time. Intuitive, easy to use.
• Interactive recipes, that can be saved and run directly on the device screen.
• Talsa EcoCut Power Control to determine the power required by the machine to achieve the desired cutting effects at any stage of the process.
• Industry 4.0 digital solutions for maintenance, process integration, and custom solutions.
• Remote access to service and technical support via secure internet connection. (router/ethernet or mobile phone)

Technical Data

• Model: K30s
• Bowl capacity: 30 liters (8 gallons)
• Approximate batch size
• soft mix ± 5-22 kg (± 11-48 lbs)
• hard mix ± 5-15 kg (±11-33 lbs)

*Motor power 5.6 kW / 7.5 HP

• Type of power supply: three-phase
• Maximum consumption
  220/230 V 22.9 A
  380/400 V 13.2 A

*Knife speed

• Smooth adjustment from 500 to 3500 rpm
• freely configurable preset buttons

*Knife linear speed 12-48 m/s

• Net weight approx. ± 330 kg (± 728 lbs)
• Sound pressure level at a distance of 1 m ± 71 dB(A)
• Operating temperature +5º to +40º C (40º to 105º F)
• Recommended relative humidity 20 to 90%

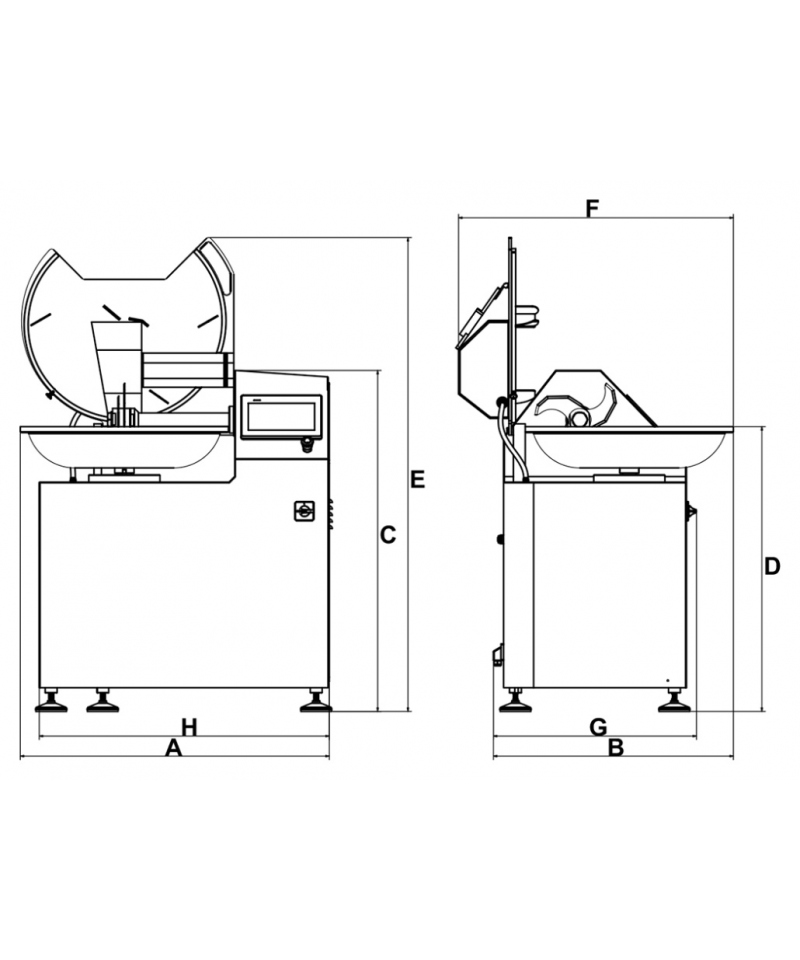

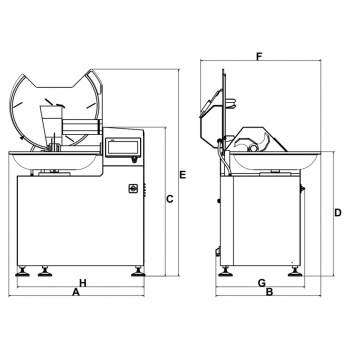

Dimensions:

Packaging:

• Dimensions: 118 x 104 x 133 cm
• Volume: 1.6 m³
