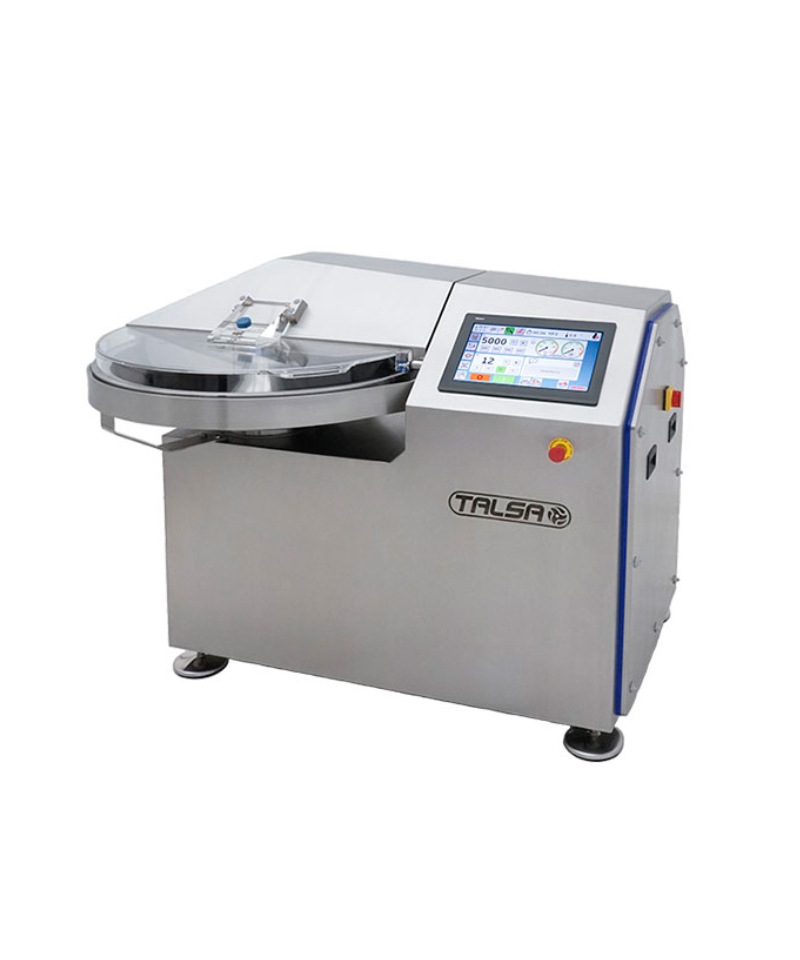

Industrial Cutter Bowl Shredder/Chopper, Talsa K55sb

Industrial Multifunction Mixers K55s Suprem Talsa

New series of K55s Suprem devices: quality, innovation, performance.

AT WORK

• Very high blade speed, smooth regulation from 500 to 5000 rpm.
• Slow mixing speed, smooth regulation from 50 to 500 rpm, forward and reverse.
• German BE-Maschinenmesser knives made of high-resistance KUT steel. Minimum space between all knives and the bowl due to its large central diameter.
• 4 buttons on the screen for direct selection of blade and bowl speeds, freely configurable.
• Mechanical, stainless steel handle for knives enabling effortless lifting and lowering.
• Transparent soundproof cover with CE certification reduces blade speed when opened; returns to previous speed upon closing.

CUTTING MECHANICS

• 6-blade interchangeable head and leveling rings for use with 3 knives.
• Simplified knife shaft, highly reliable, with high-quality bearings and seals for high speeds, 2 years warranty.
• New vibration reduction technology at high speeds, developed in collaboration with the University UPV Politecnica.
• Excellent professional results with meat, vegetables, vegan/vegetarian food, fish, special pastry.

STAINLESS STEEL CONSTRUCTION

• Completely stainless: entire frame, external and internal, made of AISI304 stainless steel, as well as all elements and components.
• Very robust construction, heavy machine weighing approximately 900 kg.
• Solid cast stainless steel bowl weighing 90 kg, with an external rim to prevent liquid or dough leakage.
• Low bowl height for more convenient operation.
• Bowl with drain plug.
• Adjustable, stainless steel machine legs, anti-slip and vibration-damping.

CLEANING

• Machine body surfaces with water draining slopes to avoid stagnation and facilitate cleaning.
• Polished surfaces without sharp corners, with CE radius facilitating cleaning and compliance with hygiene standards.
• Large, removable scraper for the bowl.
• Doubly sealed, waterproof access panels.
• Closed machine bottom.
• Replaceable black seal between the cover and bowl, with self-adjusting springs.

ELECTRICS AND ELECTRONICS

• Strong motors for quick processing of dense and cooled dough.
• Two motor powers available for knives.
• Smooth start and stop of knives and bowl using two-speed drives.
• High energy efficiency class IE3, high-performance ABB motors and latest generation drives.
• Automatic safety switch-off for knives.
• Motor thermal protection.
• Fast and sensitive digital thermometer with sensor placed in the inner recess of the cover.

SOFTWARE AND EXTERNAL CONNECTIONS (continued)

• New Talsa EcoCut Power Control feature allowing determination of the machine power required to achieve desired cutting effects at any point in the process.
• Digital Industry 4.0 solutions for maintenance, process integration, and non-standard solutions.
• Remote access to service and technical support via secure internet connection. (Router/ethernet or mobile phone).
• Foldable internal electrical panel, easy access, cooling system with temperature control.
• Electronic and electrical components from renowned brands Schneider Electric and ABB.

Technical Data

• Model: K55sb
• Bowl capacity: 55 liters (15 gallons)
• Approximate batch size
• soft mix ± 7-40 kg (± 11-88 pounds)
• hard mix ± 7-30 kg (± 11-66 pounds)

*Motor power 16.5 kW / 22.5 HP

• Three-phase electrical supply type
• Maximum consumption 380/400 V 32 A

*Blade speed

• smooth regulation from 500 to 5000 rpm
• pre-selection buttons freely configurable

• Net weight approx. ± 1000 kg (± 2200 pounds)

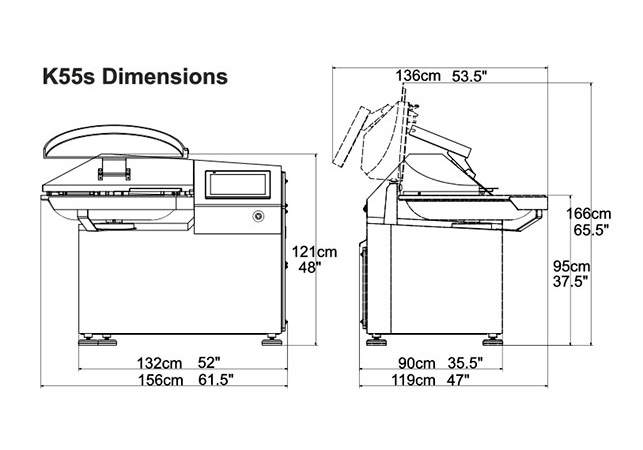

Dimensions:
